Chain Cathode Stripping Machine: Efficient, Automated Cathode Processing

Maximize productivity, ensure operator safety, and achieve superior end-product quality with our fully integrated Chain Stripping Machine. This system is designed for continuous, high-volume operations in copper electrorefining and electrowinning plants, providing seamless automation from received cathode plates to stacked copper ready for shipment.

Technical Specifications Overview

ParameterSpecificationBenefits
Processing CapacityCustomizable (e.g., Up to 300 plates/hour)Tailored to specific production requirements
Control SystemSiemens S7-1500 PLC with HMIHigh reliability, ease of operation, and remote diagnostics
Operation ModesAuto, Manual (Interlocked), TestFlexible operation for production and maintenance
Construction Material316L / 321 / 304 Stainless SteelExcellent corrosion resistance and long service life
Drive SystemServo Motor ControlPrecise positioning and smooth operation
Stripping MechanismHydraulic SystemPowerful and consistent stripping performance
Stack CountingProgrammableAccurate and consistent stack sizes
Power Supply400VAC / 50Hz / 3Phase + N + PEStandard industrial power compatibility
Safety FeaturesEmergency stops, Safety interlocksComplies with international safety standards

Main Components & Features

Plate Receiving & Transfer

  • Receives cathode plates from overhead cranes.

  • Constructed with 316L stainless steel frame and liquid pan.

  • Equipped with chain conveyor (321 stainless steel) for transport to washing and stripping stations.

Transverse Conveying System

  • Dual-layer rail design with chain protection

  • Servo-controlled for accurate positioning

  • Nylon-lined guides for noise reduction

  • 316L stainless steel liquid collection system

chain cathode stripping machine

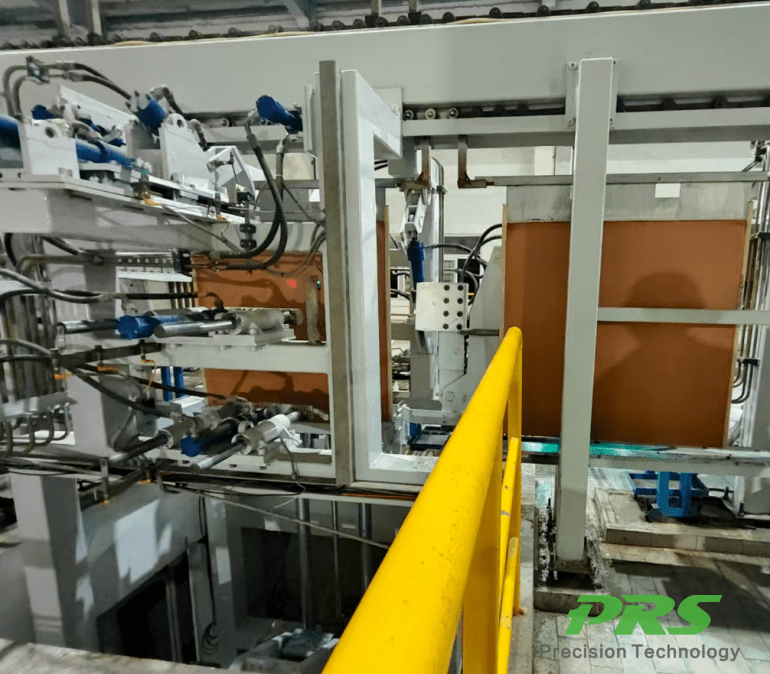

Stripping Unit

  • Hydraulically operated stripping mechanism

  • 316L stainless steel components for acid resistance

  • Integrated flip-clamp and safety systems

  • Bottom drip pan for fluid management

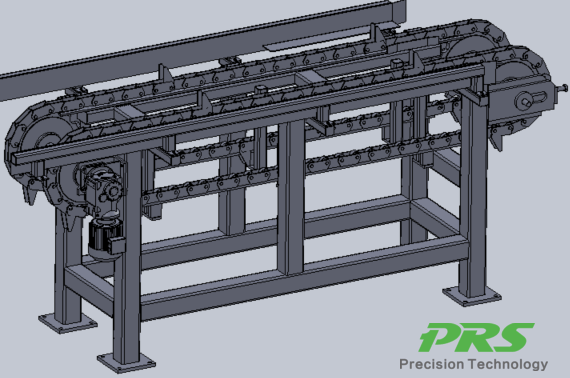

Cathode Copper Transport System

  • Wear-resistant steel chains

  • Variable frequency drive control

  • 304 stainless steel frame construction

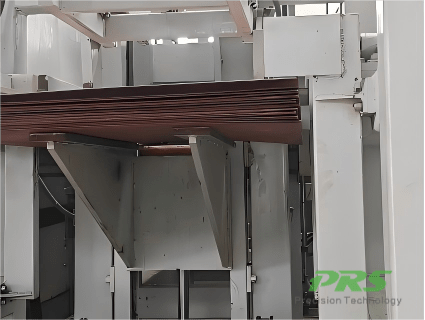

Stacking Unit

  • Automated stack counting and grouping

  • Hydraulic lifting platform

  • Programmable stack height adjustment

  • 304 stainless steel construction

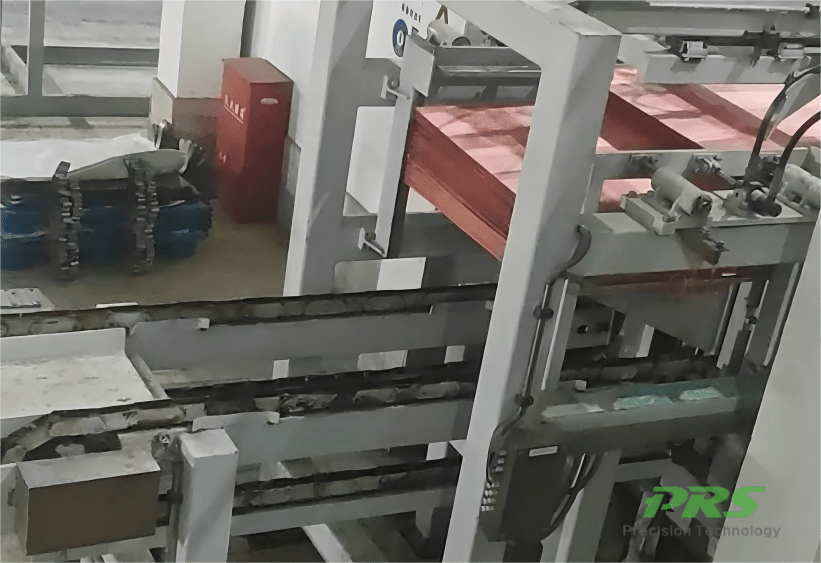

Copper Stack Conveyor

  • Transport to forklift pickup station

  • Visual signaling system

  • Wear-resistant chain system

  • Low maintenance design

Edge Clamp & Contact Bar Cleaning

  • Rubber-lined pressing system

  • Nylon brush cleaning heads

  • Protective covers and safety guards

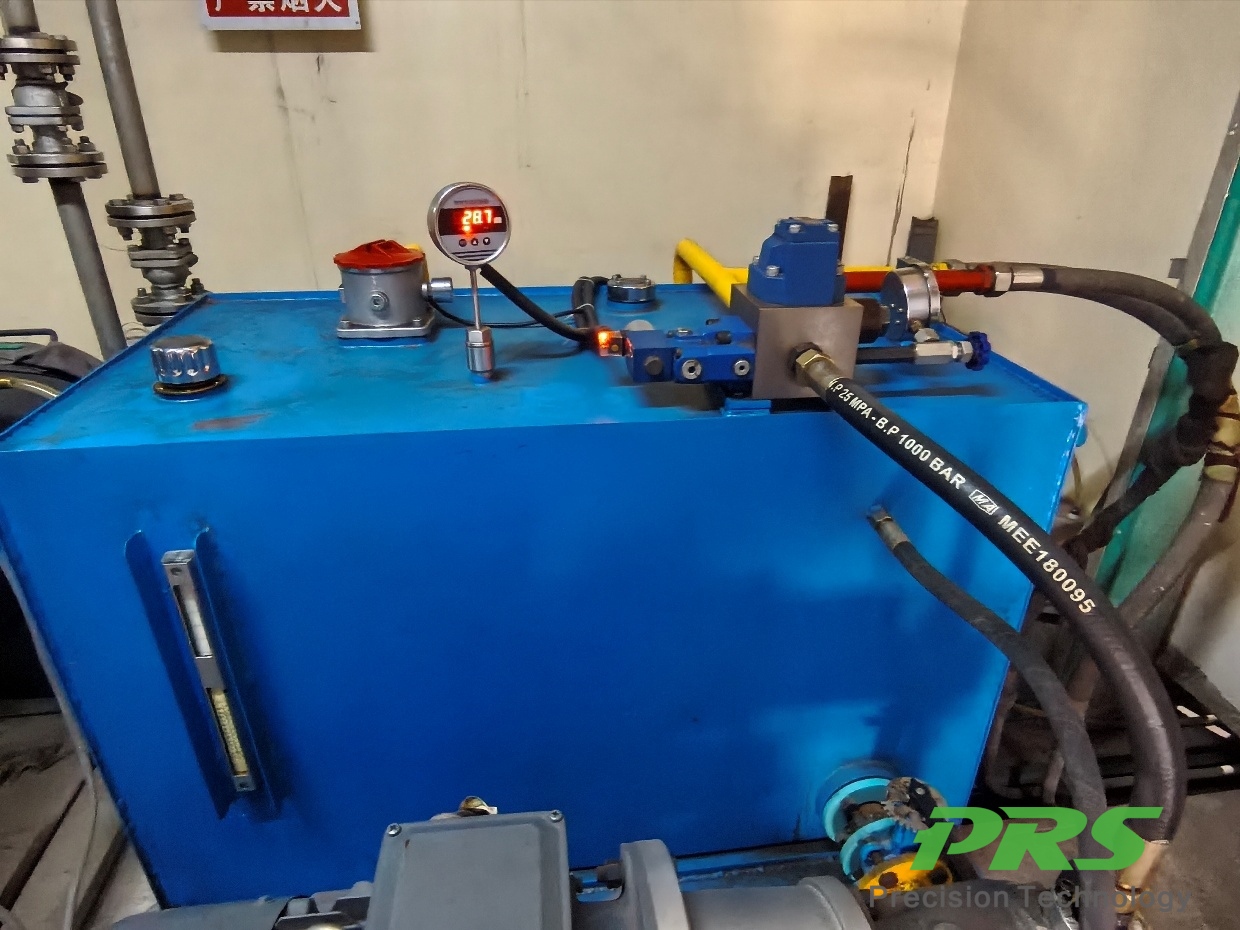

Hydraulic System

  • 304 stainless steel piping

  • 1200L reservoir capacity

  • Modular valve blocks

  • Advanced filtration system

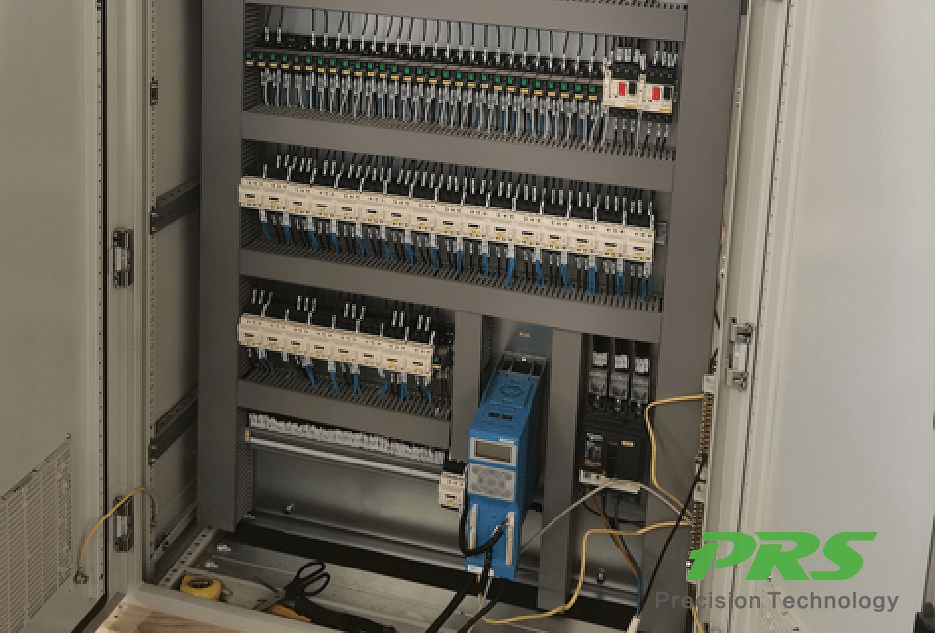

Electrical Control System

  • Siemens S7-1500 PLC

  • IP-rated stainless steel enclosures

  • Remote diagnostics capability

  • Safety interlock systems

Why Choose PRS Chain Cathode Stripping Machine?

  • Proven Reliability: Built with premium materials for harsh environment operation

  • Advanced Automation: Siemens control system with remote monitoring capability

  • Safety First: Comprehensive safety systems and emergency protocols

  • Customizable: Configurable to meet specific production requirements

  • Low Maintenance: Robust design minimizes downtime and operating costs
