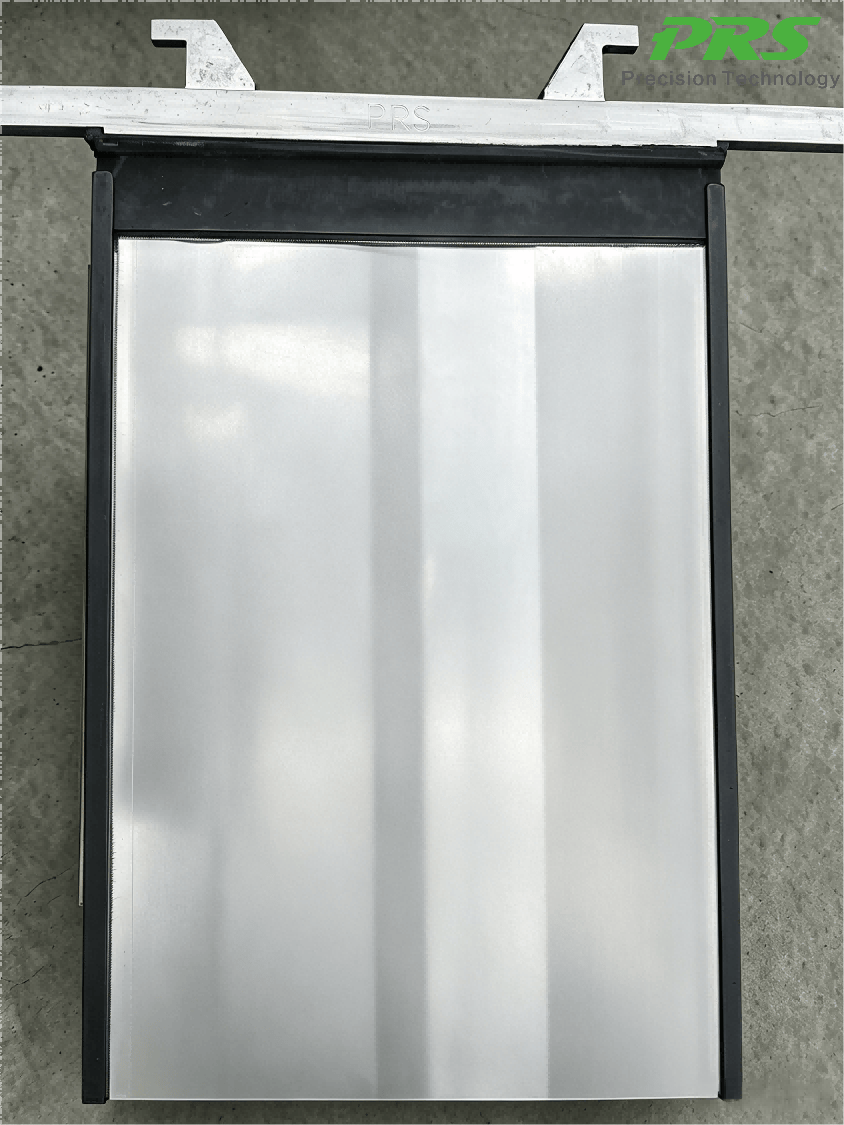

Aluminum Cathode Plate for Zinc Electrowining
| Composition of Plate Surface | Aluminum 1017H, Al ≥ 99.7% |
| Effective Plate Area | 3.2 Square Meters |
| Application for | Zinc Electrowinning |
| Service Life under Normal Conditions | 18 Months |
Zinc electrowinning plants use aluminum cathode plates as the base for depositing zinc during electrolysis. Plate surface finish, dimensional consistency, and the copper-aluminum joint’s strength directly affect stripping efficiency and service life in the cell. PRS manufactures its aluminum cathode plates to a fixed material specification and inspects each one before shipment, as part of our cathode and anode plate series for copper and zinc electrowinning.
Construction & Features
1. The hanger bar is made from a whole-body aluminum block.
2. The cathode plate is made from aluminum alloy 1070, Al ≥ 99.7%, HBS: 32-35.
3. The copper conductive end is friction-stir welded to hanger bar.
4. The liquid level part of the plate is coated with anti-corrosion material.
5. The plate surface finish level is 2B.
6. Friction-stir welding is used for welding plates and conductive beams.
Why Friction-Stir Welding
Friction-stir welding offers an advanced solid-state welding process for aluminum alloys. Because the material never melts or solidifies during welding, this process avoids the defects that fusion welding introduces. The forging action that friction-stir welding applies to the weld also makes the weld zone denser than the base material — in a zinc electrowinning environment, friction-stir welds deliver better electrical conductivity and corrosion resistance than argon-arc (TIG) welds.
PRS build the cathode conductive beam assembly using a copper-aluminum composite conductive head that cold-press diffusion welding produces, then join it to the aluminum beam by friction-stir welding. This keeps the same geometry and dimensions as a conventional beam, so plants don’t need to adjust their existing zinc electrowinning production processes. The table below compares this process against the conventional cast-conductive-head-plus-MIG-welding approach.
Technical & Economic Comparison of Cathode Conductive Beam Manufacturing Processes
No. | Item | Aluminum-Clad Copper Cast Conductive Head + MIG Welding | Copper-Aluminum Diffusion-Bonded Composite Head + Friction-Stir Welding |
1 | Economics | • MIG welding consumables (wire, shielding gas) to join the conductive head to the aluminum beam add roughly ¥10–15 per piece | • We supply the aluminum beam pre-welded to the conductive head at no additional charge, cutting energy use and purchasing cost |
2 | Technical Characteristics | • Casting molten aluminum around the copper creates only a physical bond between copper and aluminum, not a metallurgical one | • This solid-state welding process never melts the material, achieving a true metallurgical bond between copper and aluminum |
3 | Product Quality | • Cast conductive heads have lower dimensional accuracy; after MIG welding, the cathode beam’s appearance and consistency fall short of a machined product | • This process achieves a copper-aluminum bond strength above 100 MPa, exceeding casting and explosion welding — for comparison, explosion welding typically reaches only around 70 MPa |
4 | Environmental Requirements | • The process generates pollution — metal vapor from molten aluminum, casting, and MIG welding harms worker health | • The welding process runs safely and cleanly, with no fumes or radiation — a green welding technology |
5 | Occupational Health | • Workers mainly face harmful gases and metal vapor from the aluminum/tin melting and casting process | • This process creates no occupational hazards |
Quality You Can Trace
We back every aluminum cathode plate with a raw material certificate and verify dimensions on site before shipment. Read how we inspect each aluminum cathode plate before it leaves our facility.
