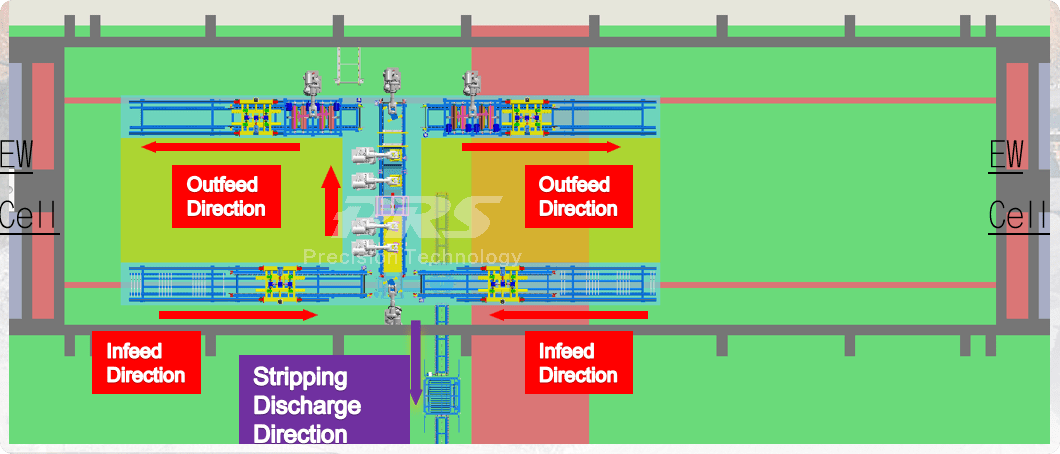

Robotic Zinc Cathode Stripping Machine (Dual Station)
The PRS Robotic Zinc Cathode Stripping Machine (Dual Station) is purpose-built by our in-house engineering team to solve long-standing pain points in large-scale zinc hydrometallurgical operations: low stripping throughput, high cathode plate damage rates, and elevated maintenance costs. This fully automated system handles the complete zinc cathode processing workflow — from pre-opening and pure zinc layer removal to plate brushing and final stacking — with minimal manual intervention, ensuring consistent, reliable performance even in continuous 24/7 plant operations.
Technical Specifications
|
Specification |
PRS Dual-Station Design Details |
|
Machine Model |
PRS Robotic Zinc Cathode Stripping Machine (Dual Station) |
|
Core Configuration |
Dual Workshop, Dual Station |
|
Rated Continuous Throughput |
700 plates/hour (2 plates per 10 seconds, under normal operating conditions) |
|
Control Architecture |
PLC integrated with closed-loop robotic motion control |
|
Core Process Functions |
Zinc cathode pre-opening, zinc stripping, plate brushing, automatic stacking & discharging |
|
Plate Compatibility |
Standard industry zinc electrowinning cathode plates |
|
Power Supply |
380V AC, 3-phase |
Interested in industry background about manual stripping’s drawbacks and intelligent upgrade trend? Read our detailed blog: Why Is Manual Zinc Stripping Gradually Phased Out in Zinc EW Plants?
3D Simulation Video
The simulation video shows the robotic stripping process, plate transfer path, stripping action, and automatic handling sequence during operation.
Core Design & Performance Features
Every feature of the PRS Robotic Zinc Cathode Stripping Machine (Dual Station) is engineered around the real-world needs of zinc electrowinning plants, balancing high throughput with low operational risk and long-term reliability:
- Modular, plant-friendly design: PRS’s modular structural design simplifies on-site installation and routine maintenance access, with an intuitive operator interface that requires minimal training for in-plant staff to operate and troubleshoot.
- Steady high-throughput operation: The dual-station configuration delivers a consistent 700 plates per hour throughput under normal process conditions, outperforming traditional single-station mechanical and manual stripping setups by up to 75%.
- Broad plate compatibility: The system is engineered to work with all standard industry zinc cathode plate specifications, with flexible program adjustments to accommodate minor plate dimension variations without reconfiguration.
- Precise automatic plate tracking & alignment: The robotic system uses real-time plate tracking to ensure micron-level precise motion alignment during every step of the stripping process, eliminating misalignment-related cathode plate damage and reducing scrap rates.
- Integrated automatic defect detection & protection: Built-in defect detection identifies abnormal plates (such as burnt, warped, or uneven plates) in real time, with closed-loop torque control that stops the stripping process immediately to protect both the cathode plate and the equipment from damage.
Traditional vs PRS Robotic Zinc Cathode Stripping Machine Performance Comparison
|
No. |
Performance Metric |
PRS Robotic Zinc Cathode Stripping Machine (Dual Station) |
|
|
1 |
Required Floor Space |
Approx. 14 × 17 m |
Approx. 15.8 × 7.5 m |
|
2 |
Continuous Production Throughput |
Approx. 400 plates/hour (normal process conditions) |
Approx. 700 plates/hour (2 plates/10 seconds, normal process conditions) |
|
3 |
Corrosion Resistance |
Bottom feeding design, with high corrosion risk to loading trolleys from acidic process fluids |
Top transfer design, fully eliminating corrosion risk to loading/unloading trolleys by keeping critical mechanical components above the process fluid zone |
|
4 |
Stripping Completion Rate |
>90% |
>98% |
|
5 |
Pre-Opening Performance |
Complex mechanical structure with multi-step actions, high risk of cathode plate deformation and edge damage |
Robot-driven direct pre-opening with small blade; flexible contact and instant piercing force resolve opening issues without hammering, reducing noise pollution and plate damage |
|
6 |
Zinc Stripping Performance |
Complex mechanical structure with multi-step actions, high risk of cathode plate scoring and surface damage |
Robot-controlled zinc scraping; closed-loop torque control enables immediate stop when abnormal plates are detected, providing superior plate protection and reducing scrap rates |
|
7 |
Brushing System Performance |
Fixed plate design with vertically moving brush roller, inconsistent brushing results and high mechanical failure rate |
Robot-lifted vertical plate movement with fixed brush roller, significantly reducing mechanical failure rate and improving brushing consistency across every cathode plate |
|
8 |
Drive System |
Standard three-phase asynchronous motor, low positioning accuracy, high plate damage risk, elevated long-term operating costs |
High-precision servo motor drive, micron-level positioning accuracy, minimal plate damage, and lower long-term operating costs |
|
9 |
Ongoing Maintenance Cost |
High part count, complex mechanical mechanism, difficult maintenance access, high ongoing labor and part costs |
Reduced part count, minimal wear components, simplified maintenance access, and low ongoing operating costs |
Typical Applications
The PRS Robotic Zinc Cathode Stripping Machine (Dual Station) is engineered for reliable, long-term performance in industrial zinc production facilities, including:
- Large-scale commercial zinc electrowinning plants
- Integrated zinc hydrometallurgical processing facilities
- Operations requiring high-throughput, low-damage cathode stripping for primary zinc production
- Plants upgrading from manual or traditional mechanical stripping setups to fully automated cathode processing
