Chain Zinc Stripping Machine for Zinc Electrowinning
In zinc electrowinning plants, stripping zinc cathodes is a repetitive and labor-intensive operation, especially in tankhouses with high acid mist levels and demanding production schedules.

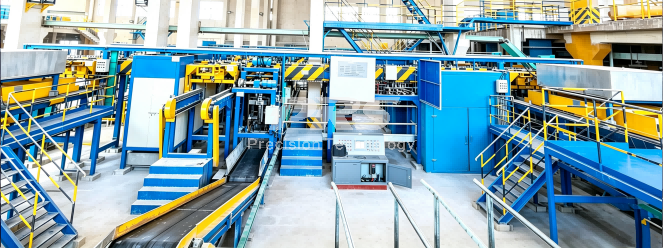

The Chain Zinc Stripping Machine is designed to automate the handling and stripping of zinc cathode plates. The system integrates cathode plate conveying, positioning, tapping, opening, zinc stripping, plate brushing, cathode plate return, and zinc sheet stacking into one continuous operation.
With a design capacity of ≥600 cathode plates/hour and a plate-to-plate cycle of ≤6 seconds, the system helps reduce manual handling, improve stripping consistency, and lower labor requirements.
See the Chain Zinc Stripping Machine in Operation
The video below shows the stripping process and automated material handling in an actual operating environment. It gives a clearer view of how the cathode plates move through the system and how the stripped zinc sheets are collected and stacked.

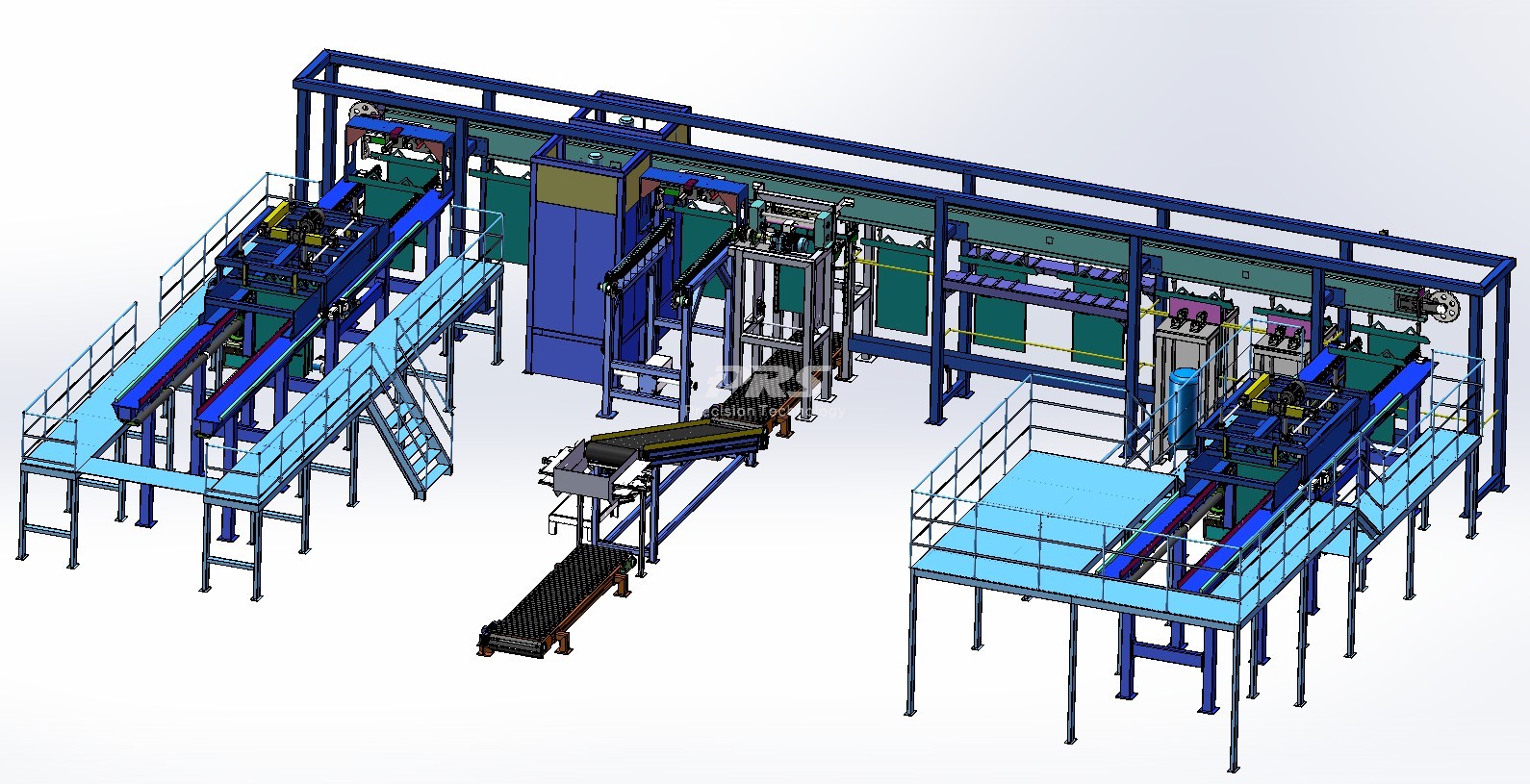

Chain Zinc Stripping Machine Layout
Overall Dimensions: Approx. 18,590 × 10,509 × 3,600 mm
The complete stripping system integrates the cathode plate handling area, stripping section, brushing section, zinc sheet stacking system and output area into a coordinated production line.
Key Technical Parameters
Parameter | Specification |
Design Capacity | ≥600 plates/hour |
Plate-to-Plate Cycle | ≤6 seconds |
Opening Success Rate | ≥98% |
Minimum Zinc Sheet Weight | 8 kg/side |
Installed Power | Approx. 75 kW |
Control System | Siemens S7-1200 PLC |
Performance is based on normal zinc deposition and properly maintained cathode plates.
Cathode Plate & Zinc Sheet Flow
- Cathode Plate Flow
Spent Cathode Plate → Receiving Rack → Transfer Trolley → Chain Conveyor → Center Positioning → Transfer Unit → Cross Conveyor → 1st Tapping → 2nd Tapping → 1st Pre-Opening → 2nd Pre-Opening → Opening Inspection → Zinc Stripping → Plate Brushing → Output Conveyor → Transfer Trolley → Return to Tankhouse
Zinc Sheet Flow

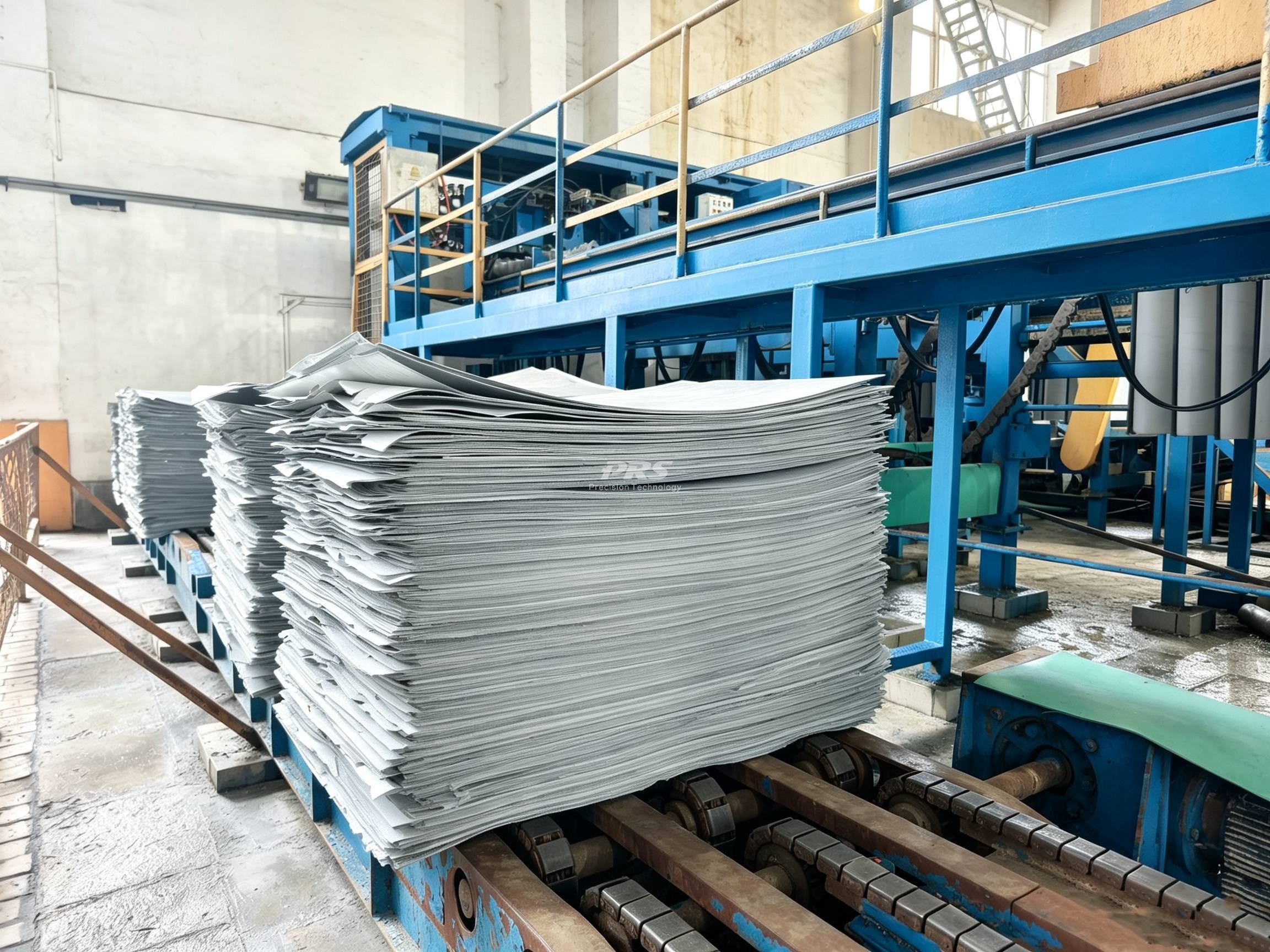

Stripped Zinc Sheet → Zinc Sheet Conveyor → Inclined Conveyor → Stacking Unit → Zinc Stack Conveyor → Transfer Roller → 90° Turning & Lifting → RGV → Zinc Stack Buffer
This integrated arrangement keeps cathode plate handling and zinc sheet collection synchronized, allowing the stripping line to operate continuously with minimal manual intervention.
Designed for Zinc Electrowinning Tankhouses
- Built for Corrosive Operating Conditions
Zinc electrowinning tankhouses typically have high acid mist levels and demanding operating conditions. Key components such as conveyor chains, sprockets, and critical mechanisms use 316L stainless steel to improve corrosion resistance and service life.
Electrical cables and connections are also protected with dedicated cable trays, galvanized conduits, and high-protection junction boxes.
- Two-Stage Opening and Stripping
The system uses pre-opening followed by main zinc stripping. This arrangement helps deal with firmly bonded zinc deposits while reducing the risk of damaging the aluminum cathode plate.
The opening blades use manganese steel with heat treatment for improved wear resistance.
- Automatic Lubrication
More than 90% of lubrication points are integrated into the automatic lubrication system. This reduces routine manual lubrication work and helps maintain stable equipment operation.
- Simple Maintenance and Fault Diagnosis
The control system uses PLC-based communication and a clear control architecture. Operating status and equipment faults can be displayed directly on the touchscreen, making inspection and troubleshooting easier.
Remote monitoring can also be integrated through a network module for faster technical support.
- Stable Handling of Cathode Plates
The conveying, positioning, stripping and brushing operations are coordinated automatically. The stripping mechanism is continuously optimized to remove zinc efficiently while reducing the risk of damage to the aluminum cathode plates.
