Titanium-based Lead Dioxide (Ti-PbO₂) Anode Plate for Copper or Zinc EW
| Alloy Composition | Titanium (Ti) and Lead Dioxide (PbO₂) |
| Effective Plate Area | 2 Square Meters for Both Sides |
| Application for | Copper EW / Eletrolysis and Zinc EW |
| Service Life | 5 ~ 8 Years for Copper EW 1.5 ~ 2 Years for Zinc EW |
Why Do You Prefer Titanium-based Lead Dioxide Used in Copper Electrowinning / Electrolysis or Zinc Electrowinning?
1. Extended Service Life:
With a documented lifespan exceeding 2 years (50% longer than traditional lead anodes) in zinc EW, it minimizes replacement frequency and downtime. The titanium base ensures dimensional stability, resisting deformation even under high-current conditions.
2. Cost Efficiency:
- Procurement cost: When the total price of titanium metal used in an anode plate is lower than or not much higher than the total price of lead metal used, it is more cost-effective to choose a titanium-based lead dioxide anode.
- Operation and maintenance cost: Lower energy consumption and maintenance costs.
3. Lightweight & Structurally Stable:
Constructed from Grade 1/2 titanium substrates, the anode combines exceptional strength with low weight. The base material can be reused after recoating, reducing long-term material costs and waste.
4. High Catalytic Activity & Corrosion Resistance:
The electrodeposited lead dioxide coating (β-PbO₂) exhibits excellent electrocatalytic properties for oxygen evolution, reducing energy consumption. It withstands aggressive electrolytes (e.g., high H₂SO₄, Cl⁻, F⁻ concentrations) with minimal corrosion or passivation.
5. Enhanced Current Efficiency:
Achieves 91–95% current efficiency (vs. 89–91% for lead anodes), promoting uniform metal deposition and higher-quality cathode outputs (e.g., LME Grade A copper or ASTM B6 SHG zinc (99.995%)).

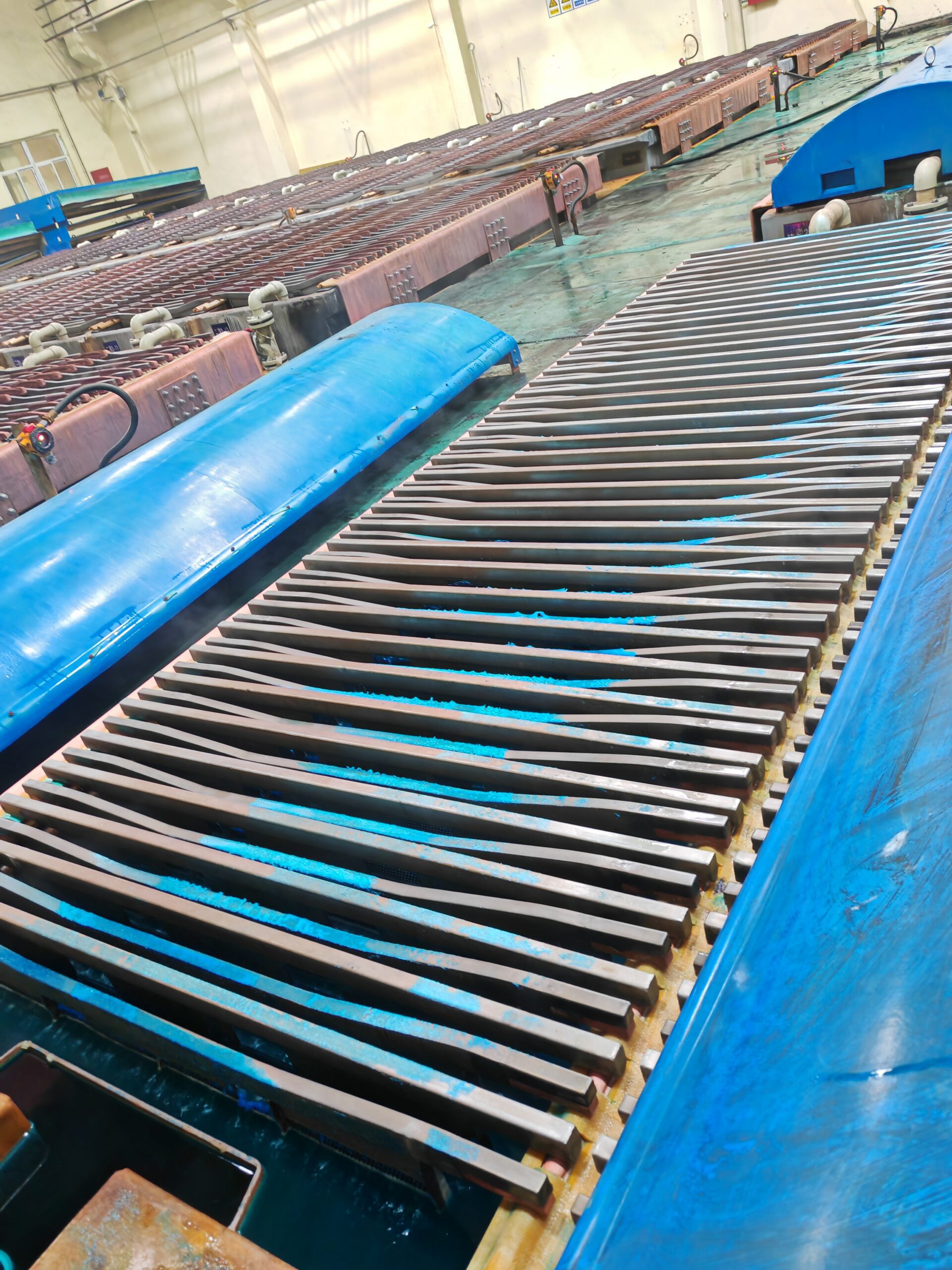

Titanium-based lead dioxide anodes were applied in the copper EW project
Titanium-based lead dioxide anodes were applied in the zinc EW project
Technical Advantages for Titanium-based Lead Dioxide Anode
Aspect | Traditional Lead Alloy Anodes | Our Ti-PbO₂ Anode | Improvement |
|---|---|---|---|
Service Life | 4 ~5 Years for Copper EW 1 ~ 1.5 Years for Zinc EW | 5 ~ 8 Years for Copper EW 1.5 ~ 2 Years for Zinc EW | +50% longevity |
Current Efficiency | 89–91% | 93–95% | +3 ~ 10% |
Corrosion Resistance | Limited F⁻/Cl⁻ tolerance | Cl⁻ ≤500 mg/L; F⁻ ≤300 mg/L | +200% resistance |
Lead Contamination | High Pb dissolution | Pb dissolution reduced by 99% | Purer cathode metal deposited |
Anode Slime | Significant generation | Near-zero anode slime | Reduced labor & downtime |
Deformation Risk | Prone to bending/short circuits when high current density | Maintains structural integrity even high current density | Lower safety risks |
Energy Consumption | Higher DC power usage | Reduced by 3–5% (≈110 kWh/t Cu saved) | Operational cost savings |
Titanium-based lead dioxide anodes were applied in the copper EW project
Titanium-based lead dioxide anodes were applied in the zinc EW project
Why Choose Our Titanium-based Lead Dioxide Anode?
Cost Efficiency: Lower energy and maintenance costs outweigh initial investment.
Product Quality: Cathodes meet LME Grade A Copper / ASTM B6 SHG Zinc standards due to minimal impurity ingress.
Safety & Reliability: Reduced short-circuit risks and operator exposure to toxic lead.
Customization: Available in sizes up to 1100 × 1700 mm.
Transform your electrowinning process with an anode that combines innovation with proven performance. Contact us today for technical specifications, pricing, and case studies from global mining operations on the bottom of this page. Let us help you achieve higher efficiency, sustainability, and profitability.
