45,000 TPA Copper EW Plant

45,000 TPA Copper Electrowinning Plant

This project is a 45,000 t/a copper electrowinning facility—centered on a Cathode Copper Tankhouse—designed for an annual output of 45,000 t/a copper cathode, integrating process design, equipment layout, environmental control, and logistics planning into a unified engineering solution.

The entire project is developed using 1:1 full-scale 3D modeling, in which all equipment, materials, and structures are digitally assembled prior to on-site execution. This approach enables a 360-degree virtual review of every process area, allowing potential issues to be identified and resolved in advance—significantly reducing rework, shortening construction timelines, controlling costs, and ensuring smooth project implementation.

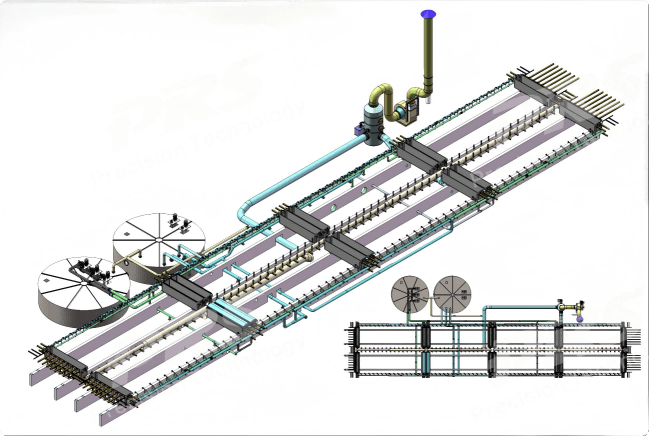

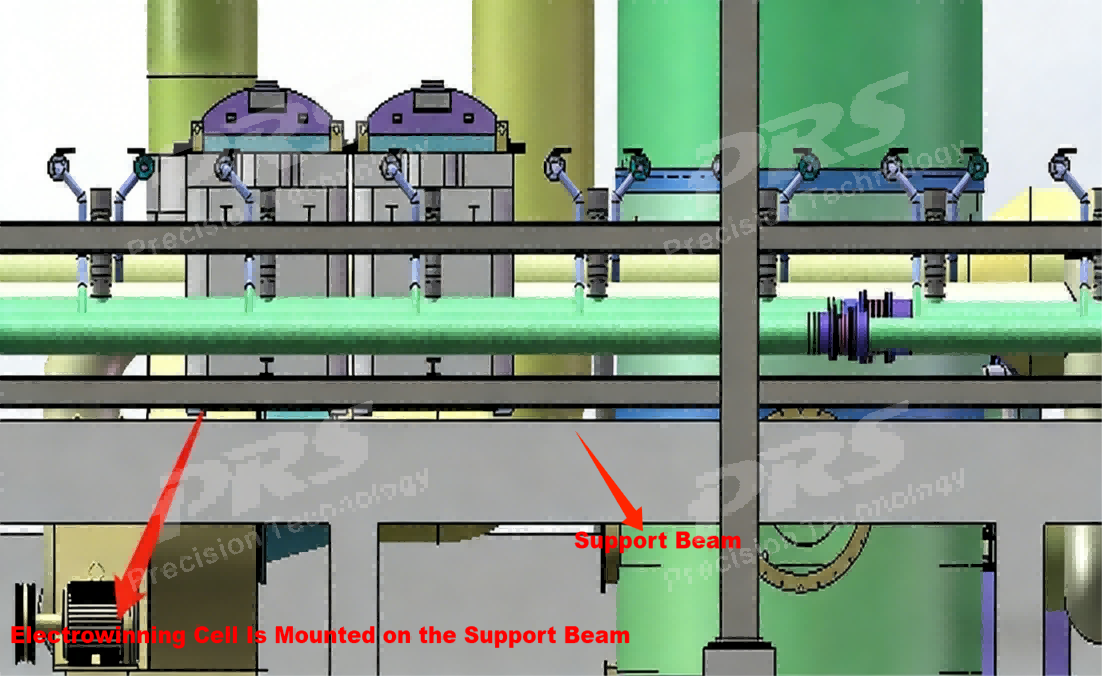

3D Drawings-Piping System

Cathode Copper Tankhouse and Workshop Layout

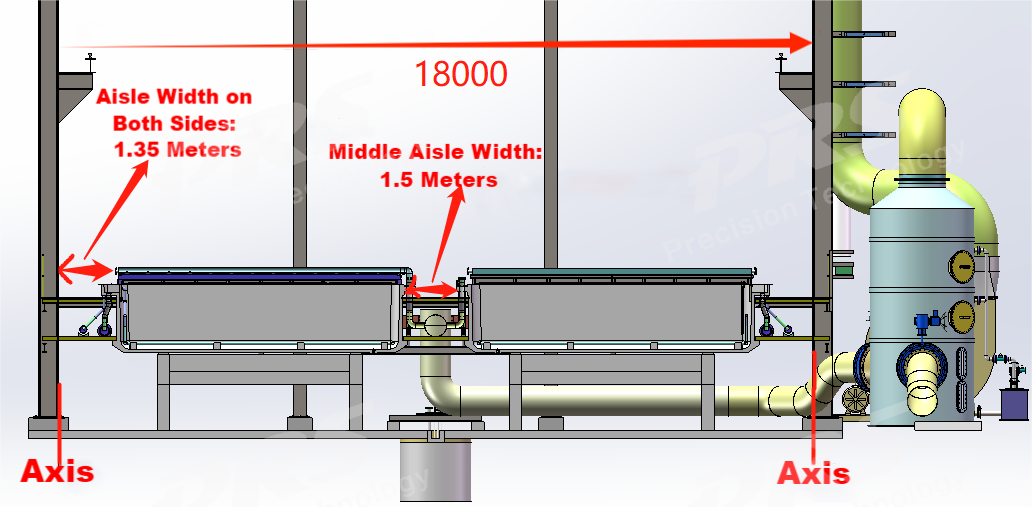

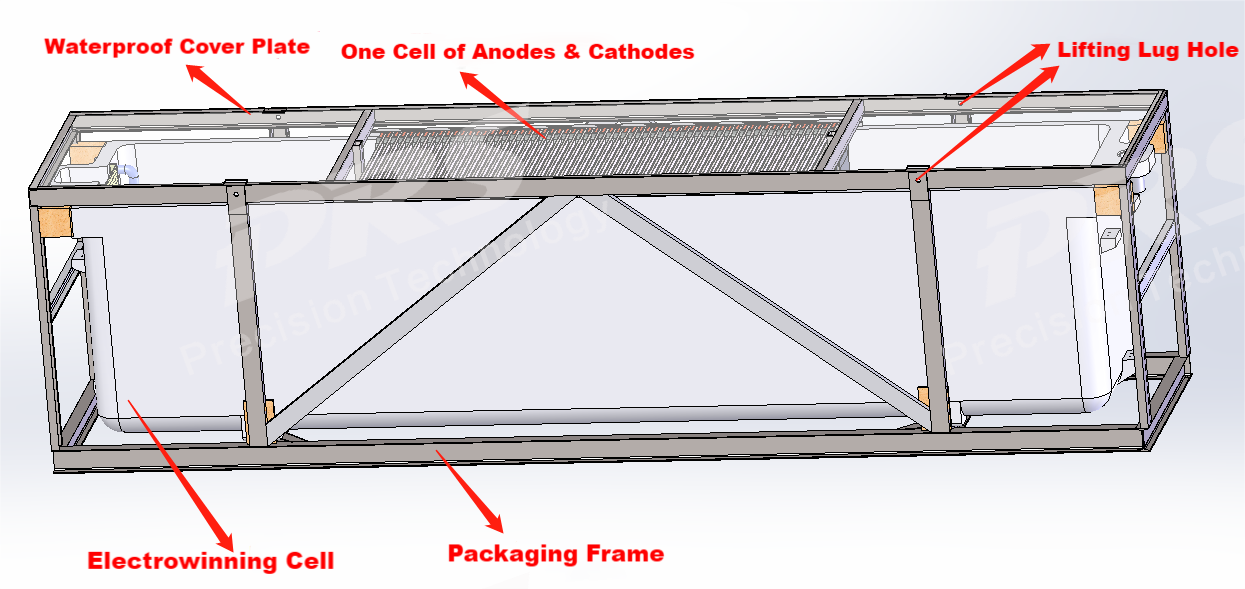

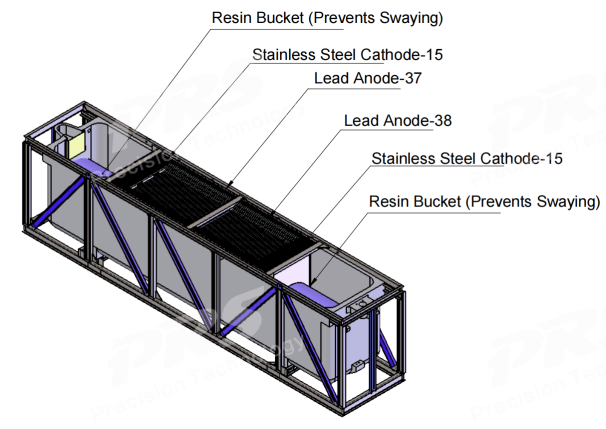

The Cathode Copper Tankhouse (electrowinning workshop) is designed with a main hall width of 18 meters and a length of 112 meters, with the cathode copper stacking area arranged at the end of the cell line. Circulation cells are installed in the auxiliary span with a simplified rain shelter, while rectifiers are configured for outdoor installation, also protected by lightweight roofing. Acid mist control is fully integrated within the workshop, and the design of cells, piping, and platforms is optimized as a coordinated system to ensure operational efficiency, safety, and maintainability.

Process Flow

Main Design Parameters Table

No.	Item	Unit	Value	Remark
1	Output	t/a	45000	High-purity Cathode Copper
2	Current Density	A/m2	300~330
3	Operation Rate	%	92
4	Current Efficiency	%	90
6	Cell Voltage	V	1.9~2.2
7	Electrode Spacing	mm	100
9	Cathode Cycle	d	6
10	No. of Anodes per Cell	piece	64
11	No. of Cathodes per Cell	piece	63
12	Cathode Deposition Area	M2	2.2	Double-sided per Piece
13	Solution Circulation Rate per Cell	l/min	120
14	Annual Working Days	d/a	330
