In copper electrowinning (EW) operations, Cathode Lift Bales—also called Cathode Bailers—are essential yet often overlooked components. These rugged lifting tools move thousands of cathodes daily between stripping machines, washing stations, and storage racks.
Despite their simple appearance, a poorly designed lift bale can lead to costly production delays, equipment damage, or even operator injuries. At PRS, we re-engineer this “unsung hero” to meet the real-world demands of today’s high-throughput copper plants, combining durability, safety, and intelligent handling features.
What Is a Cathode Lift Bale?

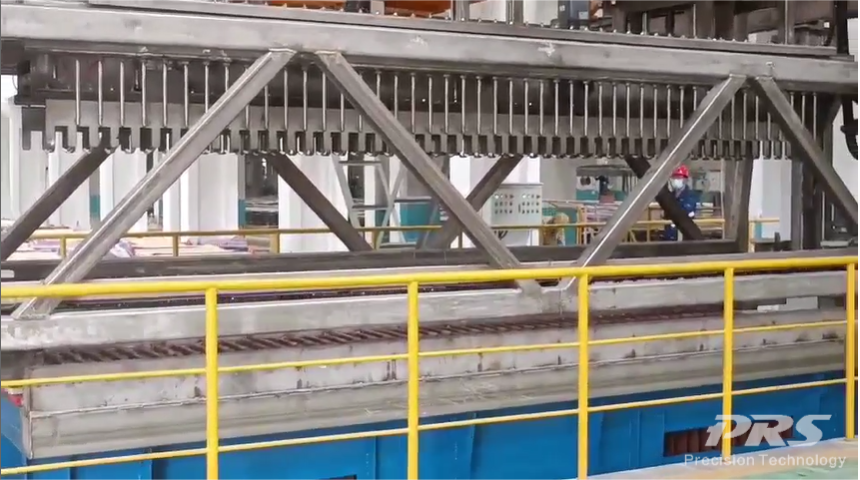

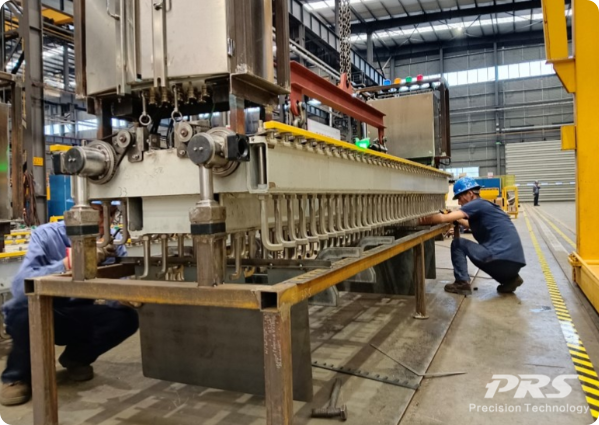

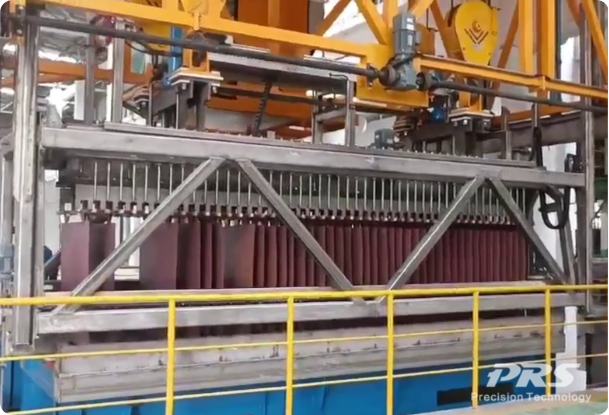

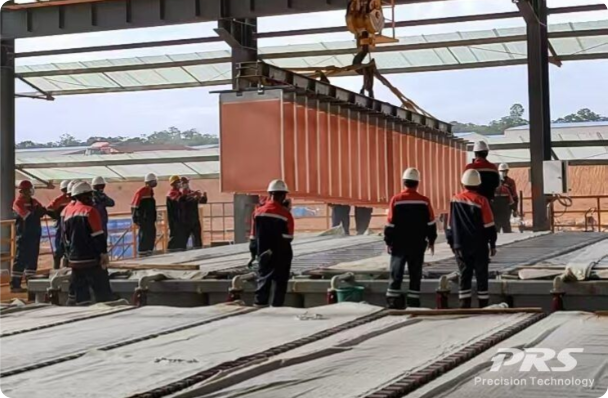

A Cathode Lift Bale is a U-shaped lifting attachment designed to hoist and transfer multiple cathode plates (permanent cathode blank) securely during the electrowinning process. Typically attached to overhead cranes or forklifts, it enables efficient movement of cathodes between:
- Stripping machines→ Washing stations
- Electrolytic cells→ Storage racks
- Inspection zones→ Packaging areas
While the function seems straightforward, achieving safe and reliable lifting at scale presents several engineering challenges—especially in harsh plant environments.
3 Common Lift Bale Problems (and How PRS Solves Them)
1. Fatigue Failure Under Repeated Heavy Loads
-
Problem: Traditional bales crack after 20,000+ lift cycles due to metal fatigue.
-
PRS Solution:
-
Material: Forged 17-4PH stainless steel (Yield strength: 1,100 MPa).
-
Design: Radiused corners reduce stress concentration by 40%.
-
Testing: 100,000-cycle fatigue simulation (ASME BTH-1 standard).
-
2. Corrosion in Aggressive Electrolytes
-
Problem: Acidic electrolyte splashes (pH 0.5–2) corrode carbon steel bales.
-
PRS Solution:
-
Coating: Electroless nickel plating (ENP) withstands 5,000+ hours in salt spray (ASTM B117).
-
Alternative: Titanium alloy bales for coastal plants.
-
3. Cathode Slip Prevention
-
Problem: Unsecured cathodes fall during transfers, damaging products.
-
PRS Solution:
-
Auto-Locking Hooks: Spring-loaded latches engage when cathodes are lifted.
-
Non-Slip Pads: Replaceable rubber inserts increase friction by 70%.
-
PRS Lift Bale Specifications vs. Conventional Models
| Parameter | Standard Bale | PRS Lift Bale |
|---|---|---|
| Material | Carbon steel | 17-4PH SS / Titanium |
| Max Load | 1.5 tons | 3 tons |
| Corrosion Life | 6–12 months | 5+ years |
| Safety Lock | Manual pin | Auto-locking hook |
| Compliance | ISO 4301 | ASME B30.20 + ISO 4301 |
Smart Features Built for 24/7 Tankhouse Operation
Modern copper plants demand more than just strength — they need smart, trackable equipment. That’s why PRS offers:
- RFID Tagging: Track usage cycles, lifting history, and inspection logs
- Load Monitoring: Integrated sensors trigger overload alerts to the control room
- Quick-Change Hooks: Replace worn hooks in under 5 minutes, no tools required
Real-World Results from a Zambian Copper Plant
Challenge: Carbon steel bales failed every 8 months, causing 3-day shutdowns ($150k loss/incident).
PRS Solution:
-
17-4PH stainless bales with ENP coating.
- Auto-locking hooks + IoT load monitoring.
Results:
- Zero failures in 3 years.
- 95% reduction in dropped cathodes.
- ROI achieved within 11 months.
Conclusion
The cathode lift bale may be a small component, but its impact on safety and efficiency is massive. With the right design and materials, it ensures smooth, reliable operations—day in and day out.
At PRS, we build the advance spreader that perform under pressure, and we back them with engineering you can trust.
