To achieve maximum energy efficiency in your copper electrowinning plant, optimizing copper busbar (CBB) design is non-negotiable. The right combination of material purity, current density control, and surface treatment can slash energy losses by up to 15%, reduce operational costs, and extend equipment lifespan. At PRS Technology, our data-driven approach ensures CBBs deliver peak performance—whether connecting transformers, rectifiers, or electrowinning cells. This article breaks down proven strategies, including LME Grade A copper selection, thermal loading, and anti-corrosion coatings, backed by real-world case studies from 3,000TPA plants. Discover how to transform your busbars from cost centers to efficiency drivers.
1. PRS Case Study: Electrowinning Plant Copper Busbar Layout
A well-designed busbar layout minimizes voltage drop and heat generation. Below is a simplified schematic from a PRS-designed 3,000TPA copper electrowinning plant:
Key Features:
- Shortest Path Routing: Reduces resistance losses .
- Modular Segments: Allows easy maintenance and scalability.
- Symmetrical Design: Ensures uniform current distribution across cells.
Tip: For plants with >10kA current, use flexible laminated busbars to absorb thermal expansion.

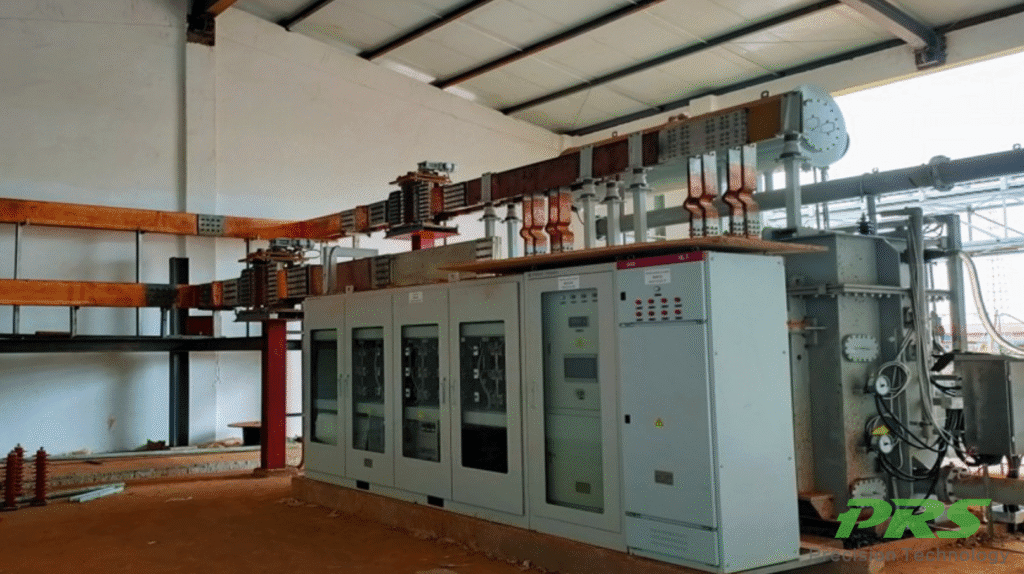

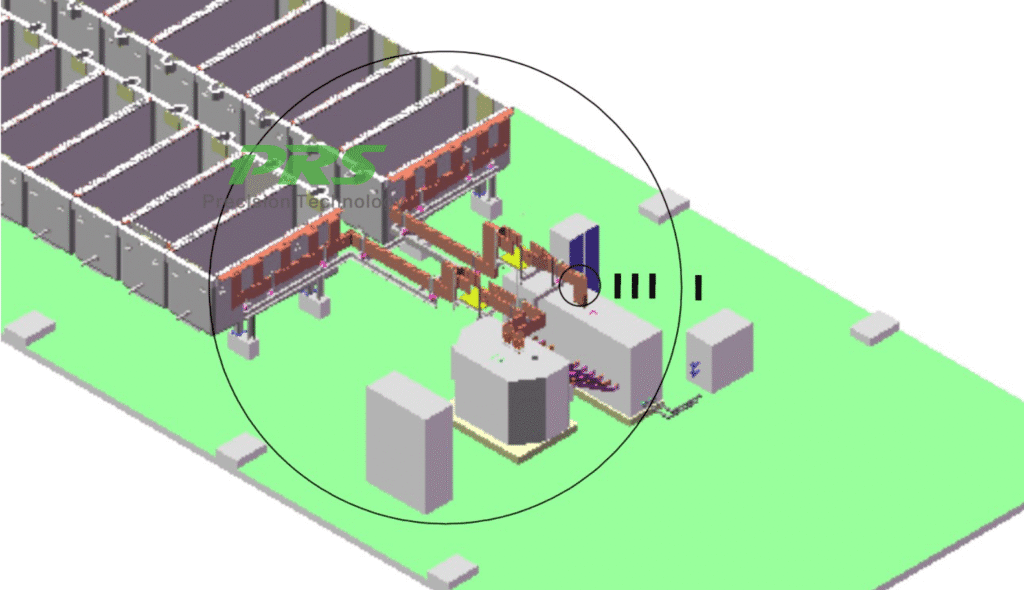

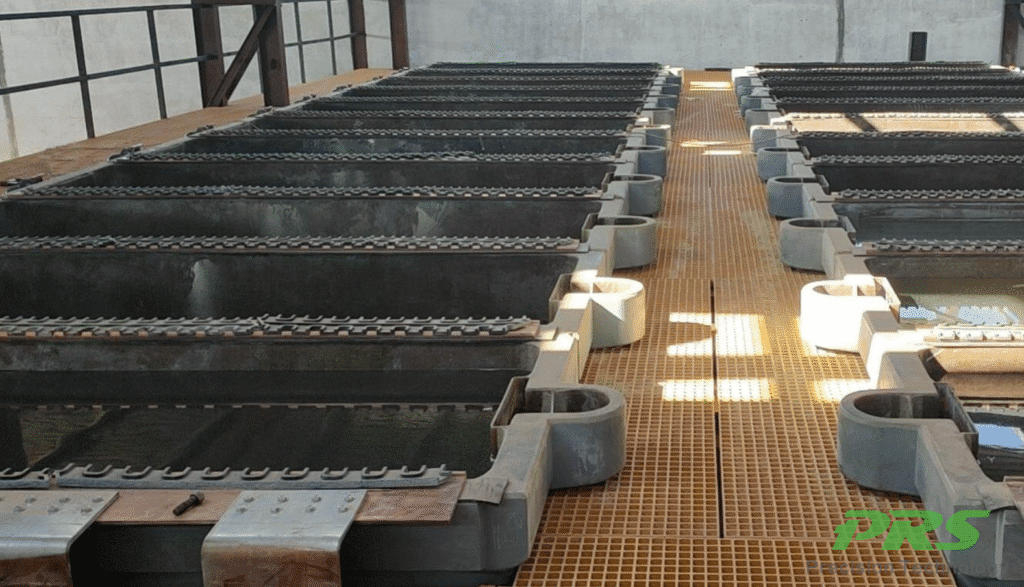

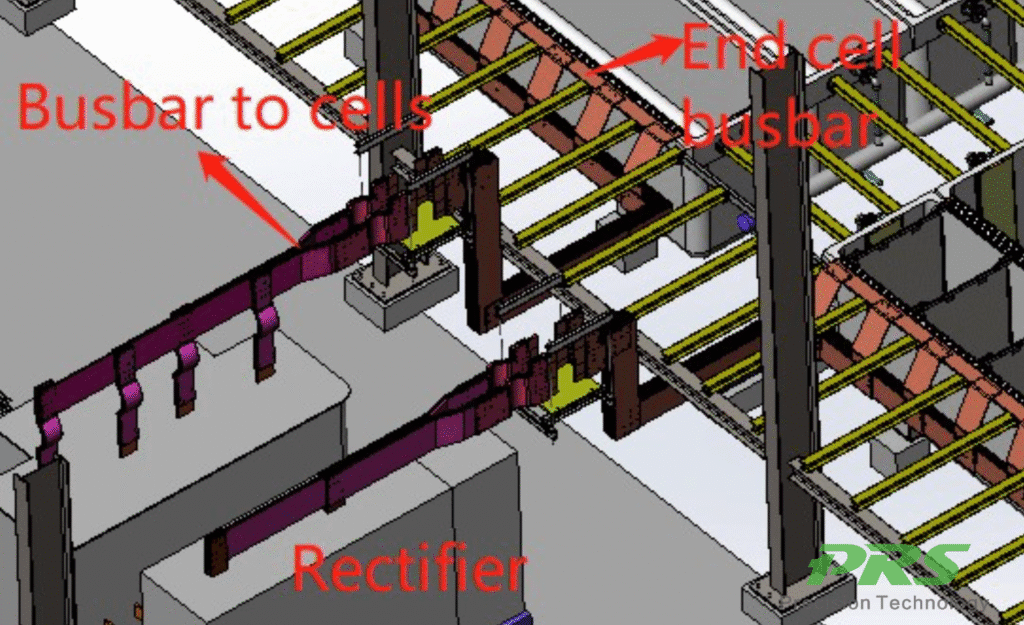

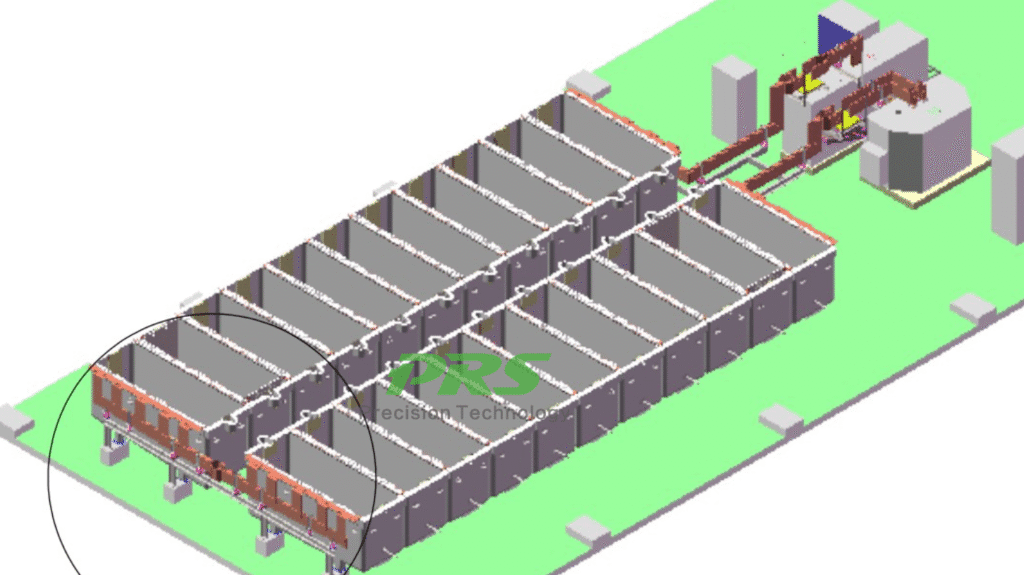

We provided a detailed 3D model and annotated layout drawing to help the client visualize and plan future expansions. This visual planning stage is essential to avoid costly on-site rework.
2. Material Matters: Why PRS Use LME Grade A Copper
PRS exclusively uses LME Grade A copper (99.99% purity) for busbars, offering:
- Conductivity: 100% IACS (International Annealed Copper Standard), ensuring minimal energy loss.
- Ductility: Withstands thermal cycling without cracking.
- Compliance: Meets ASTM B187 standards for industrial applications.
3. Current Density & Thermal Management: Finding the Balance
Current density directly affects busbar temperature rise. PRS recommends the following guidelines based on IEC standards and industry practice:
Natural Convection: 1.6–3.0 A/mm² (ΔT ≤ 50°C, per IEC 60439-1:2020)
Forced Cooling Limits:
Air Cooling: ≤ 6 A/mm² (ΔT ≤ 40°C)
Water Cooling: ≤ 12 A/mm² (ΔT ≤ 30°C)
Case Example
For a 50 kA system, PRS designed a 400 mm × 10 mm copper busbar for the short-circuit frame:
Cross-sectional area: 4,000 mm²
Current density: 12.5 A/mm² (with liquid cooling)
- Requires: Oxygen-free copper and controlled water cooling
- Temperature rise: <30°C above ambient
4. Surface Treatment: Tin Plating for Longevity
5. Surface Finish: Why Smoothness Matters
PRS applies electrolytic tin plating (5–10μm thickness) to busbars, providing:
- Oxidation Resistance: Extends lifespan in humid or acidic environments.
- Low Contact Resistance: Maintains stable connections at joints.
- Cost Efficiency: 40% cheaper than silver plating with 90% performance retention.
Comparison:
Coating | Cost | Conductivity | Corrosion Resistance |
Bare Copper | $ | 100% | Poor |
Tin | $$ | 98% | Excellent |
Silver | $$$$ | 105% | Good |
A polished surface (Ra ≤0.8μm) enhances performance by:
- Reducing Hot Spots: Eliminates micro-roughness that traps heat.
- Improving Contact: Lowers interfacial resistance by 15%.
- Aesthetic Appeal: Signals quality to inspectors and clients.
6. Applications: Where PRS Busbars Perform Best
PRS designs busbars for:
- Transformer-Rectifier Links: Optimized for 1,000–10,000VDC systems.
2. Cell-to-Cell Connections: Low-resistance joints for uniform current distribution.
3. Switchgear Integration: Compact designs for space-constrained plants.
Conclusion: Smart Busbar Design for Safe and Efficient Electrowinning
A high-quality copper busbar system is not just about materials—it’s about design, current density, surface finish, layout planning, and long-term operability.
At PRS, we help clients build customized, scalable, and safe power distribution systems for their copper EW plants.
Want a busbar layout drawing for your next plant? We’re happy to make the design and supply for you.
